Porsche Carrera GT 2004 - 2006
Change Model
  Next

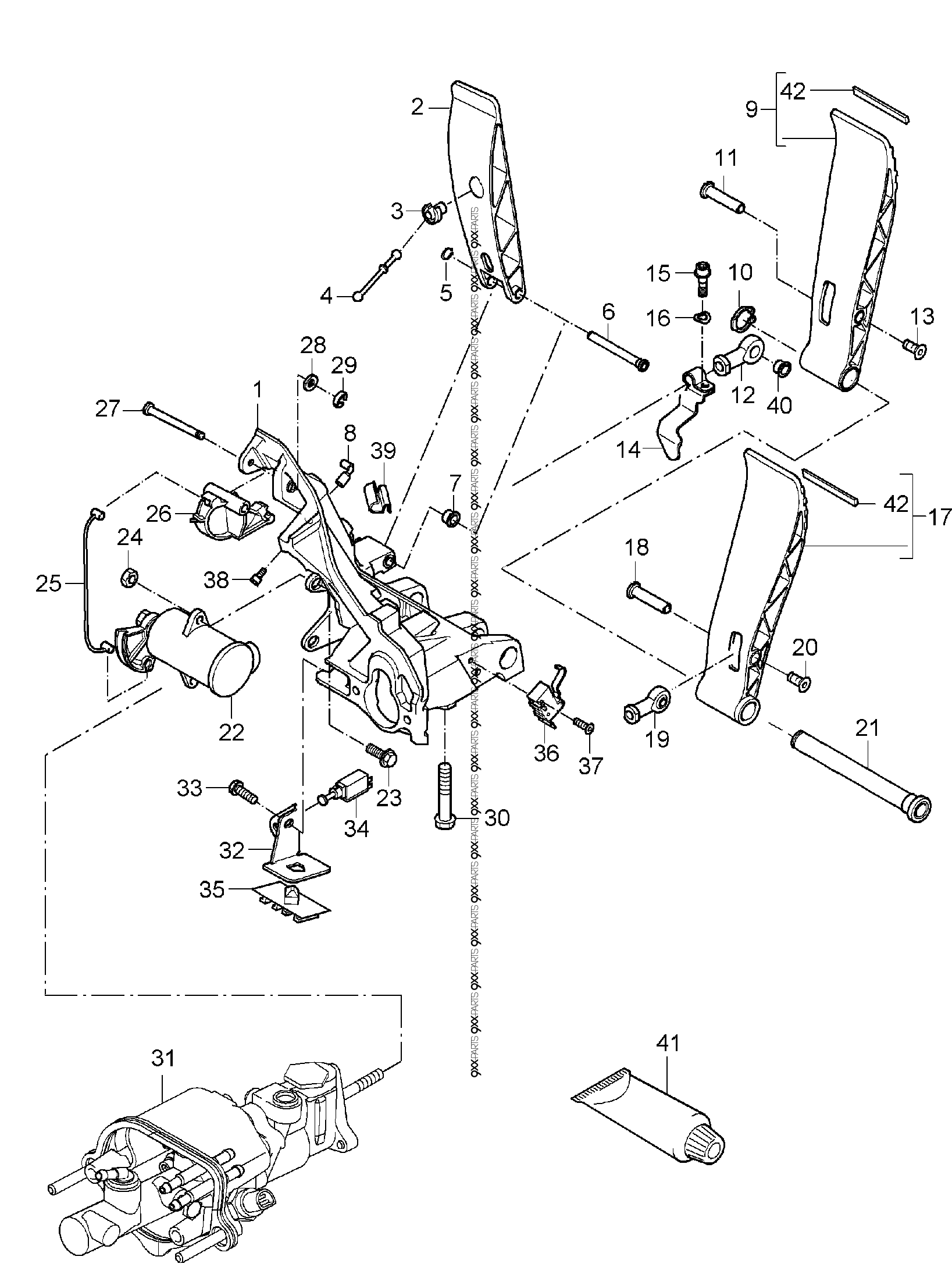

Porsche Carrera GT (2004 - 2006) 702-000 brake and clutch pedals cluster

1.
Console
bracket for pedal cluster
98042316503
€0.90
2.
Accelerator pedal
98042311902
€568.26
3.
Insert
Accelerator pedal
98042324500
€30.33
4.
push rod
99642318101
€54.63
5.
Retaining washer
Discontinued part
90011600302
Contact us for a quote.
5.
Retaining washer
90011600309
€2.75
6.
guide pin
98042324700
€82.53
7.
bush
99992416100
€7.65
8.
Stop
Accelerator pedal
98042339503
€170.10
9.
Foot brake
98042304103
€752.85
-
Bush
99992408100
€17.37
10.
Securing ring
N 0124181
Contact us for a quote.
11.
Threaded sleeve
98042317700
€140.13
12.
Joint head
Foot brake
98042328101
€218.07
13.
countersunk bolt
90024900102
Contact us for a quote.
14.
Stop
switch - brake light
98042336501
€209.97
15.
Socket head bolt
99921808402
€4.32
16.
Spring washer
No longer use the part here
90002804700
Contact us for a quote.
(16.)
Spring washer
90002800707
€1.80
17.
clutch pedal mechanism
98042306903
€695.70
18.
Threaded sleeve
98042317500
€129.69
19.
Joint head
Clutch pedal switch
99635583180
€289.08
20.
countersunk bolt
Discontinued part
90024903402
Contact us for a quote.
20.
countersunk bolt
90024907201
€1.80
21.
Bearing shaft
Clutch pedal switch
98042328301
€280.35
22.
accelerator pedal sender
Discontinued part
99660611500
Contact us for a quote.
22.
accelerator pedal sender
99660611501
Contact us for a quote.
23.
Hexagon bolt
90037818809
€0.90
24.
Hexagon nut
Discontinued part
90038001509
Contact us for a quote.
24.
Hexagon nut
90038001501
€1.44
25.
Cable
accelerator pedal sender
98042338301
€87.57
26.
Clutch plate
99642338101
€25.74
27.
guide pin
Clutch plate
98042338500
€44.19
28.
Washer
90002507300
€10.62
29.
Retaining washer
99916604002
Contact us for a quote.
30.
Hexagon bolt
90037825409
€10.80
32.
Bracket
switch - brake light
98042336101
€129.69
33.
Hexagon bolt
90037803609
Contact us for a quote.
34.
Switch
Foot brake
99661311301
Contact us for a quote.
35.
Retaining clip
99965011740
€4.32
36.
Switch
Clutch pedal switch Discontinued part
99661310900
Contact us for a quote.
(36.)
Switch
Clutch pedal switch
99761310900
Contact us for a quote.
37.
flat round head bolt
90014615902
Contact us for a quote.
39.
Cable holder
99950762502
€1.80
40.
bush
99992410300
€24.30
41.
Grease
1 tube
00004320534
Contact us for a quote.
-
Tread
98002521100
€94.86

Other illustrations in 02 brake and clutch pedals cluster

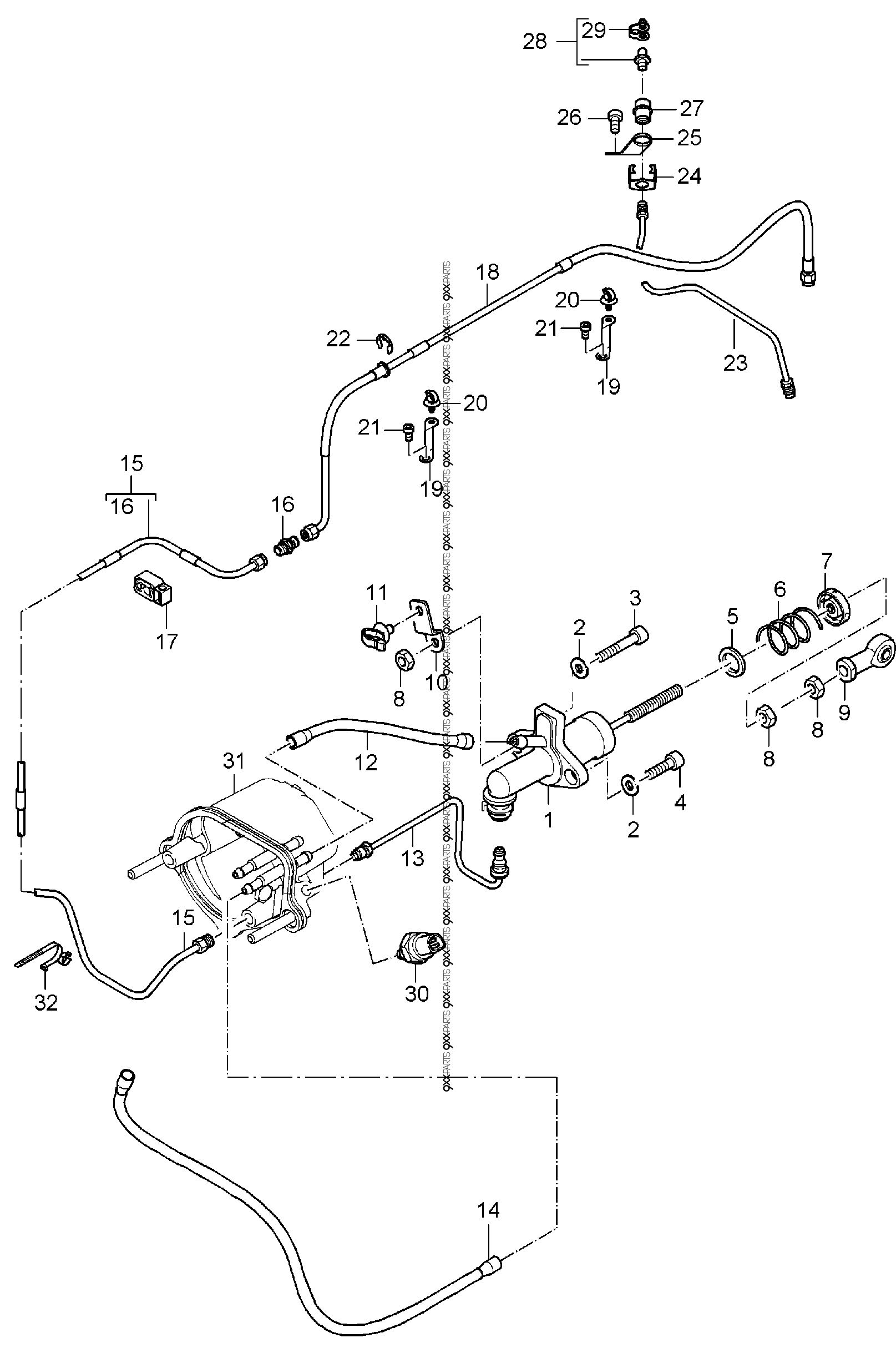

702-008
Hydraulic coupling actuation
47 items
>
